Bimetallic KL-Type Fin Tubes are manufactured using a highly efficient heat transfer mechanism that utilizes a mechanically wound external fin material (e.g., aluminum) onto a metal base tube (e.g., stainless steel, carbon steel, copper alloy etc). The knurled foot structure promotes a better fin-to-tube contact resulting in improved thermal performance, vibration resistance and longevity for challenging heat exchanger duties.
Bimetallic KL-Type Fin Tubes
Bimetallic KL-Type Fin Tubes are of the most commonly used enhanced heat transfer devices in the current heat exchangers, air coolers, economizer, condenser and HVAC systems. Surface area enhancement is an optimum process to increase thermal efficiency. By having two distinct metals, the KL-Type tubes achieve both the heat transfer performance and structural integrity.
As an experienced KL-type bimetallic finned tube manufacturer India, we produce precision-engineered fin tubes that meet demanding industrial requirements. Our finning process utilizes a specially formed fin strip wrapped around a base tube with a knurled foot configuration that ensures strong mechanical bonding and superior heat transfer characteristics.
The combination of an external fin material and an internal pressure-bearing tube provides an economical and efficient solution for industries seeking higher thermal performance without increasing equipment size.
What Are Bimetallic KL-Type Fin Tubes?
Bimetallic KL-Type Fin Tubes are mechanically bonded finned tubes manufactured by winding an aluminum or copper fin strip around a base tube. Before the fin is applied, the fin foot is knurled, creating a textured contact surface that improves the grip between the fin and tube.
Unlike standard L-Type Fin Tubes, KL Tubes feature a knurled foot that provides:
- Better fin-to-tube contact
- Improved heat transfer efficiency
- Enhanced mechanical stability
- Increased resistance to vibration
- Longer service life in industrial applications
The resulting structure offers superior performance while remaining cost-effective compared to fully extruded fin tube designs.
Table of Content
- What Are Bimetallic KL-Type Fin Tubes?
- How Does a KL Bimetallic Finned Tube For Heat Exchanger Function?
- Key Features of ASTM Bimetallic KL Fin Tubes
- Construction of Mechanically Bonded KL-Foot Fins
- Advantages of Bimetallic KL-Type Fin Tubes
- Bimetallic KL-Type Fin Tubes Specifications Chart
- Chemical Composition Chart
- Mechanical Properties Chart
- Common Material Combinations
- Applications of Industrial Knurled Fin Tubes
- Custom Bimetallic KL Fin Tubes for Specialized Projects

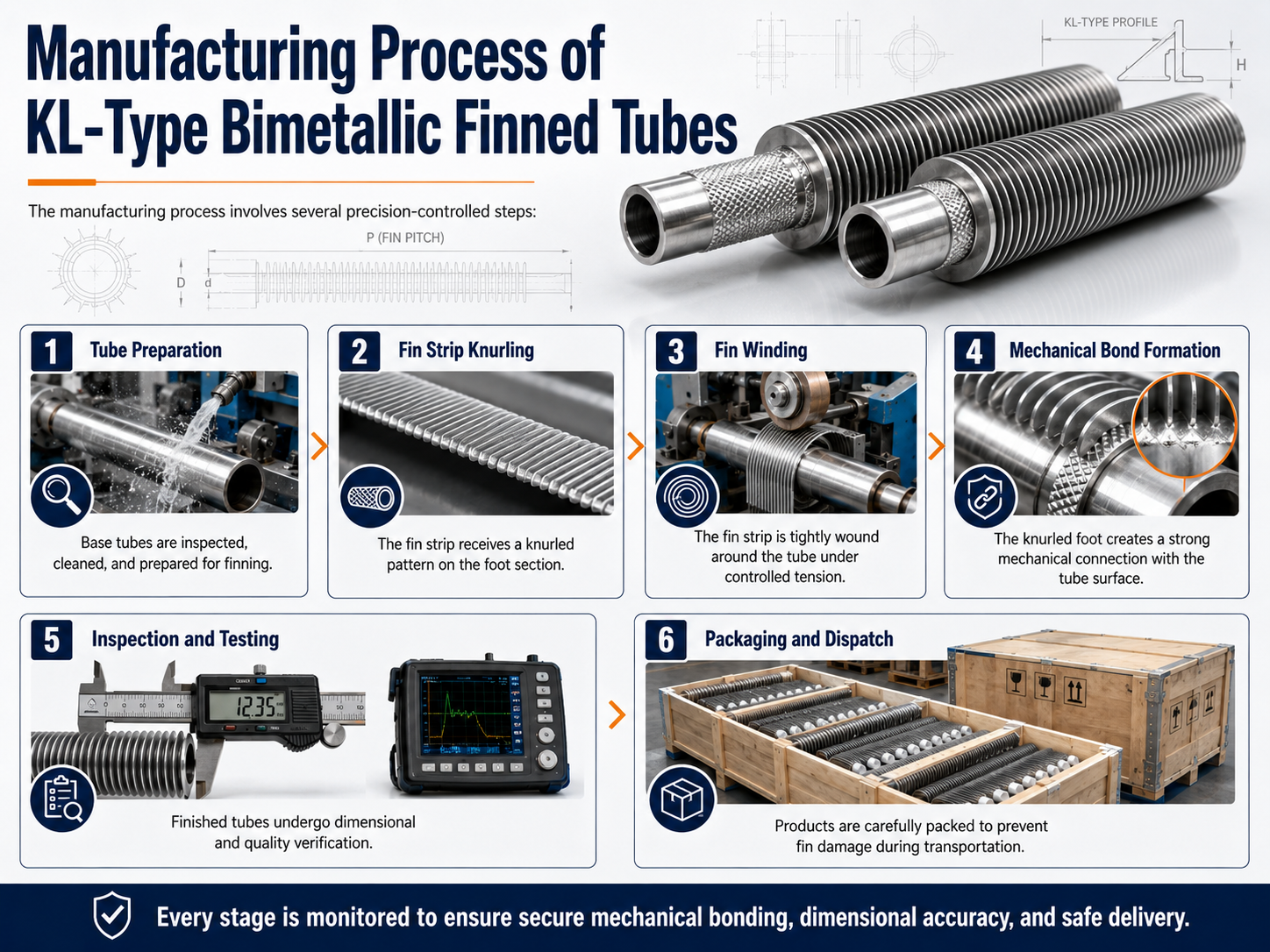

- Manufacturing Process of KL-Type Bimetallic Finned Tubes
- Why Choose Us for Bimetallic KL-Type Fin Tubes?
How Does a KL Bimetallic Finned Tube For Heat Exchanger Function?
Effective thermal energy transfer in heat exchangers is determined by having the largest surface area possible. The fins on the outside significantly increase the heat transfer surface compared to a bare tube.
In KL Bimetallic Finned Tubes For Heat Exchangers heat is transmitted from the working fluid inside the tube to the outside fin surfaces. Heat can then be transferred more effectively through the knurled fin foot and the contacting fin to tube interface.
This design helps achieve:
Because of these benefits, KL fin tubes are extensively used in industrial heat recovery and process cooling systems worldwide.
