Pipes & Tubes for the Boiler Industry

Boiler Materials Supplier: Tubes, Header Pipe, Fittings and Flanges

Dinesh Tube India supplies the pressure-part materials for boilers from Mumbai to boiler makers, boiler fabricators, re-tubing contractors, sugar mills, power plants and process industries. One enquiry can cover the full boiler package: tubes for water walls, boiler bank, economiser and superheater coils, pipe for headers and steam lines, and the matching butt-weld fittings and flanges, with EN 10204 3.1 certificates and IBR Form III-A / III-B where required.

This page is organised by boiler component, so you can see which material is normally used where. For full chemistry, properties and sizes of each tube grade, see our boiler tubes page and the individual grade pages linked below.

Table of Contents

Materials by Boiler Component
Our Boiler Industry Range
Boiler Bank, Economiser, Superheater and Water Wall Tubes
Equivalent Boiler Grades
Quality and Testing
Industries We Serve
FAQs

Boiler Materials by Component

A water-tube boiler is made of several pressure parts, each running at a different metal temperature. Cooler parts use carbon steel; parts that run hotter, such as superheaters and their headers, need chrome-moly alloy steel. The table below shows the usual product form and material for each component.

Boiler Component	Product Form	Usual Materials
Water walls (membrane panels)	Seamless tube	SA210 A1, SA192
Boiler bank / generating tubes	Seamless tube	SA192, SA210 A1
Economiser coils	Seamless tube (plain or finned)	SA210 A1, SA192
Low-temperature superheater coils	Seamless tube	SA210 C, SA213 T11
High-temperature superheater and reheater coils	Seamless tube	SA213 T22, T91; TP304H / TP347H stainless
Economiser and water wall headers, downcomers	Seamless pipe	SA106 Gr B / C
Superheater headers, main steam line	Seamless pipe	SA335 P11, P22, P91
Feedwater and drum nozzle piping	Seamless pipe	SA106 Gr B
Bends, tees, reducers, end caps	Butt-weld fittings	SA234 WPB; WP11, WP22, WP91 for alloy lines
Valve and line connections	Flanges	SA105; SA182 F11, F22, F91 for alloy lines
Fire-tube / smoke tubes	ERW or seamless tube	SA178 A, SA192, BS 3059 Part 1 ERW 320
Air preheater	ERW tube	SA214, Corten A423 Gr 1, SA178 A

Typical selections only. The boiler designer chooses the grade from metal temperature, pressure and the design code (ASME Section I or IBR). Drums are made from boiler-quality plate by the boiler maker.

Building or re-tubing a boiler? Send your bill of materials (grade, OD/NB, wall or schedule, length, quantity and IBR requirement) to kamlesh@dineshtube-india.com or call +91 83559 10913. You can also send an enquiry.

Our Boiler Industry Range

Carbon Steel Tubes

ASME SA192, SA210 Gr A1 / C (seamless); SA178 Gr A / C, SA214 (ERW)

Alloy Steel Tubes

ASME SA213 T11, T22, T91; T5, T9 on request

Pipes

ASME SA106 Gr B / C; SA335 P11, P22, P91

Fittings & Flanges

SA234 WPB / WP11 / WP22 / WP91; SA105, SA182 F11 / F22 / F91

British / European

BS 3059 Part 1 & 2, EN 10216-2, EN 10217-2

Air Preheater

ASTM A423 Gr 1 Corten, SA214, SA178 A

Tube Sizes

12.7 – 127 mm OD, 2.0 – 12 mm wall (min or average)

Pipe Sizes

1/2" – 24" NB, SCH 40 / 80 / 160 / XXS

Length

Random lengths or exact cut length to drawing

Certification

EN 10204 3.1 MTC; IBR Form III-A (pipe) / III-B (tube); 3.2 on request

Tubes for Boiler Components

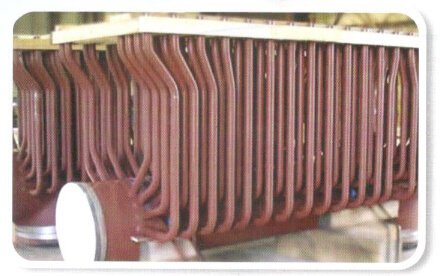

Boiler bank tubes between steam drum and mud drum

Boiler Bank & Economiser Tubes

SA192 and SA210 A1 seamless tubes for generating banks and economiser coils.

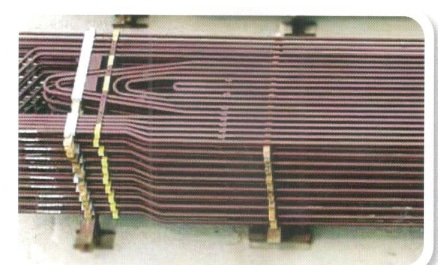

Superheater coils made from alloy steel boiler tubes

Superheater Tubes

SA213 T11, T22 and T91 alloy tubes, and SA210 C for low-temperature stages.

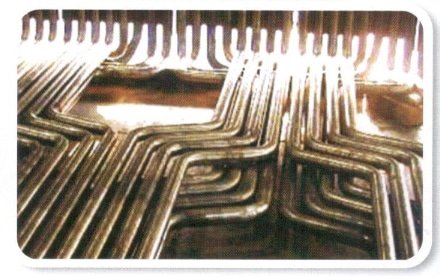

Water wall membrane panel made from SA210 A1 tubes

Water Wall Tubes

SA210 A1 and SA192 tubes for furnace water wall membrane panels.

We supply the tubes and pipes used to build these components, cut to length and ready for bending and welding. Coil bending, finning and membrane panel welding are done by the boiler maker or fabricator. For IBR boilers, see our IBR tubes and IBR pipes pages.

Equivalent Boiler Grades (ASME, EN, DIN, JIS, BS)

ASME	EN	DIN (old)	JIS	BS 3059-2 (old)
SA192	P235GH (EN 10216-2)	St 35.8	STB 340	360
SA210 A1	P265GH (EN 10216-2)	St 45.8	STB 410	440
SA178 A	P195GH (EN 10217-2)	—	STB 340 (ERW)	Part 1: ERW 320
SA106 Gr B	P265GH	St 45.8	STPT 410	—
SA213 T11	—	—	STBA 23	—
SA213 T12	13CrMo4-5	13CrMo44	STBA 22	620
SA213 T22	10CrMo9-10	10CrMo910	STBA 24	622-490
SA213 T91	X10CrMoVNb9-1	—	STBA 28	91

Nearest equivalents only. Chemistry, strength and testing differ between standards, so confirm with the purchaser or design code before substituting one grade for another.

Quality and Testing

Fully killed steel, as required by SA192, SA210 and SA213
Hydrostatic or eddy current test on every tube, to ASTM A450 / A1016
Flattening, flaring and hardness tests for expanding and bending
Weld-seam testing on ERW tubes (SA178, SA214)
Heat number and specification marked on each tube for traceability
EN 10204 3.1 certificate; IBR Form III-A / III-B; third-party inspection on request

Industries We Serve

Industrial and commercial boiler makers
Boiler fabricators, repairers and re-tubing contractors
Sugar mills and cogeneration plants
Power generation and HRSGs
Pulp and paper mills
Fertiliser, chemical and petrochemical plants
Edible oil mills

Boiler Industry Materials: FAQs

Which tubes are used for boiler water walls?

Water walls are usually made from seamless carbon steel tubes to ASME SA210 Grade A1 or SA192, joined by fin bars or strips into gas-tight membrane panels. SA210 A1 is stronger, so it allows a thinner wall at the same pressure; SA192 is a softer low-carbon grade often used in lower-pressure boilers.

What material is used for superheater tubes?

Low-temperature superheater stages often use SA210 Grade C or SA213 T11. Hotter stages and reheaters use chrome-moly alloy tubes such as SA213 T22 and T91, which keep their strength and resist oxidation at high metal temperatures. The hottest sections may use stainless steel TP304H or TP347H.

Which tubes are used for economiser coils?

Economisers run at feedwater temperature, so they normally use carbon steel seamless tubes to SA210 A1 or SA192. The tubes may be plain or finned; finning and coil bending are done by the boiler maker or fabricator.

What pipe is used for boiler headers?

Headers that carry water or saturated steam are usually seamless carbon steel pipe to ASME SA106 Grade B or C. Superheater outlet headers and main steam lines run hotter and use alloy steel pipe to SA335 P11, P22 or P91.

Do you supply fabricated coils and water wall panels?

We supply the tubes and pipes used to build boiler components, cut to length to your drawing, along with matching fittings and flanges. Coil bending, finning and membrane panel welding are normally done by the boiler maker or fabricator.

Can you supply boiler materials with IBR certificates?

Yes. For boilers registered in India we supply pipes with IBR Form III-A and tubes with IBR Form III-B on request, after inspection by an IBR-recognised inspecting authority. Mention the IBR requirement in your enquiry, as it affects lead time.

Export Destinations

We export boiler pipes and tubes to the Middle East (UAE, Saudi Arabia, Qatar, Kuwait, Oman, Bahrain, Iraq), Africa (Nigeria, Egypt, South Africa, Kenya, Ghana, Tanzania), Asia (Bangladesh, Sri Lanka, Nepal, Indonesia, Malaysia, Thailand, Vietnam, Philippines) and other markets on request.
