APH Tubes for Air Preheater Manufacturers & Boiler Makers
Dinesh Tube India supplies air preheater (APH) tubes from Mumbai to air preheater manufacturers, boiler makers, power plants and maintenance contractors in India and abroad, including Malaysia, South-East Asia and the Middle East. We supply Corten steel APH tubes to ASTM A423 Grade 1 for the corrosion-prone cold end, and ERW carbon steel APH tubes to ASME SA214 for the main tube bank.
Tubes are available from 19.05 mm to 114.3 mm OD in cut lengths to suit your air preheater design, for new units and for re-tubing. We supply the tubes, not the air preheater itself. Send your tube schedule or drawing for a quote.
What Is an Air Preheater Tube?

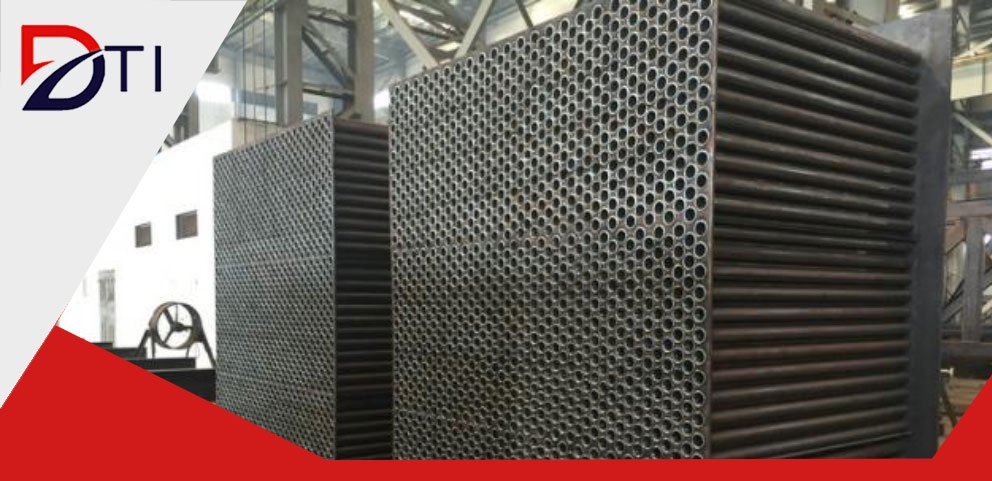

A tubular air preheater recovers heat from the boiler flue gas and uses it to warm the combustion air before it enters the furnace. That raises boiler efficiency and cuts fuel use. The unit is a large bank of thin-walled straight tubes. Flue gas flows through the tubes and air flows across them, or the other way round. These APH tubes (also called air heater tubes) are usually 38–63.5 mm OD and are replaced in sections when they corrode or erode.
The biggest threat to APH tubes is cold-end corrosion. Where the flue gas cools below its acid dew point, sulphuric acid condenses on the tube surface. That is why the cold end is often tubed with Corten steel (ASTM A423 Grade 1), while the hotter zones use standard ERW carbon steel (SA214).

Corten specification sheet: Download ASTM A423 Grade 1 Tube Specification (PDF)




APH Tube Materials by Zone
The boiler or air preheater designer sets the material for each zone. Send us the tube schedule and we will match it.
Corten ASTM A423 Grade 1 Chemistry & Properties
The copper, chromium, nickel and phosphorus in A423 Grade 1 form a protective layer that slows acid dew-point corrosion. For carbon steel APH tube chemistry, see our SA214 tubes page.
APH Tube Sizes
Common air preheater tube sizes are listed below. Other sizes from 19.05 to 114.3 mm OD can be supplied to your design.
