What are Bimetallic L-Type Fin Tubes?
The Bimetallic L-Type Fin Tubes are heat transfer tubes manufactured by mechanically winding an aluminum or copper fin strip around the outside of the base tube which is manufactured from carbon steel, stainless steel, copper alloy, or other metals. The fin strip is given an "L" foot and helically wound onto the base tube with the fin tightly wrapped under tension; this process produces superior contact between the fin and the tube surface. The tubes are used extensively in air coolers, heat exchangers, HVAC condensers, economizers, and waste heat recovery systems to increase thermal performance with relatively little cost increase.
Industrial Bimetallic L-Type Fin Tubes for Efficient Heat Transfer
Effective heat transfer performance is critical to today's industrial processes. From power generation, petrochemicals, HVAC, marine engineering to process cooling, the ability to maximize efficiency in heat exchangers translates directly to lower operation costs and increased reliability of the system.
Our L-Type Bimetallic Finned Tubes have been developed to maximize surface area while providing superior mechanical strength. These finned tubes combine two different metals — a base tube and a fin material — to deliver superior thermal performance and corrosion resistance.
As an experienced Industrial Bimetallic Fin Tube Manufacturer, we supply customized solutions for demanding industrial environments where efficiency, durability, and long service life are essential.
What Are Bimetallic L-Type Fin Tubes?
A Bimetallic L-Type Fin Tube consists of:
- A base tube carrying the process fluid
- An external fin strip mechanically wound around the tube
- An L-shaped foot formed at the base of the fin
- Continuous tension winding that ensures intimate contact between fin and tube
The fin strip is wound helically under controlled tension, creating a permanent mechanical bond without requiring welding. The "L-foot" design allows the fin material to cover the entire external surface of the tube, providing additional atmospheric protection and enhanced heat transfer capability.
This manufacturing method makes L-Type Tension Wound Finned Tubes one of the most economical and widely used finned tube configurations in industrial heat exchange applications.
Table of Content
- What Are Bimetallic L-Type Fin Tubes?
- How Bimetallic L-Type Fin Tubes Work
- Construction of Bimetallic L-Type Fin Tubes
- Key Features of Our Bimetallic L-Type Fin Tubes
- Bimetallic L-Type Fin Tubes Specifications
- Mechanical Properties Chart
- Chemical Composition Charts
- Applications of Bimetallic L-Type Fin Tubes

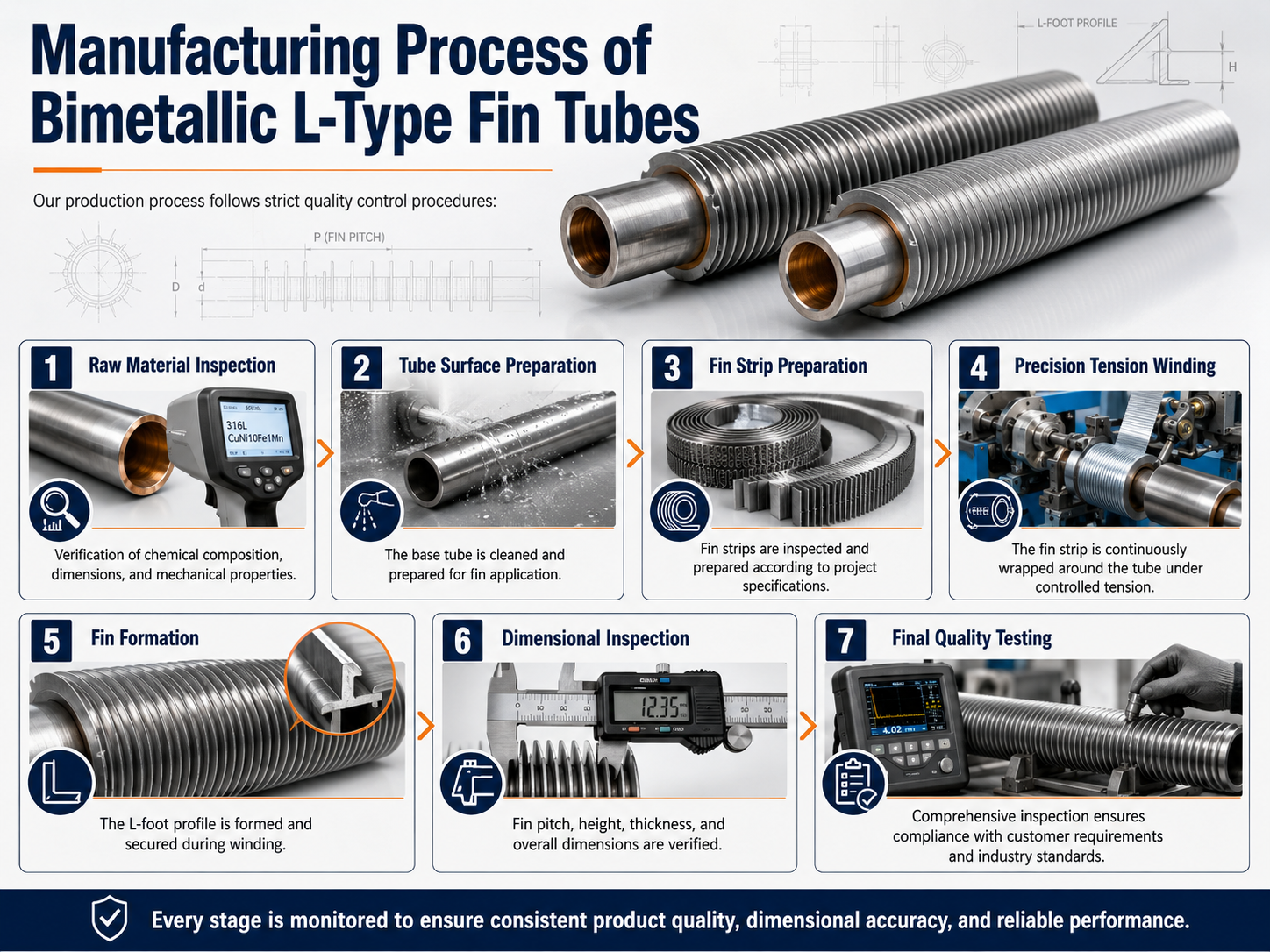

- Manufacturing Process
- Why Choose Our Bimetallic L-Type Fin Tubes?
How Bimetallic L-Type Fin Tubes Work
The primary purpose of finned tubes is to increase the effective heat transfer area. The process works as follows:
Because the fin surface area can be many times greater than the bare tube area, thermal performance improves significantly while reducing equipment size and operating costs.
