Condenser Low Fin Tube for High-Efficiency Heat Transfer Applications

What Is a Condenser Low Fin Tube?

Condenser Low Fin Tube refers to a heat transfer tube that is characterized by a low, integral fin, directly formed from the tube wall itself. The low fin tube enhances the outside surface area and consequently the efficiency of heat exchange between fluids. Low fin tubes are generally employed in condensers, heat exchangers, refrigeration equipment, air-conditioning systems and power plants as there is a demand for high thermal efficiency and compact size of the equipment.

Key Benefits:

  •   Enhanced heat transfer efficiency
  •   Increased external surface area
  •   Reduced equipment size
  •   Lower energy consumption
  •   Improved condenser performance
  •   Longer operational life
  •   Suitable for high-performance industrial applications

Introduction to Condenser Low Fin Tubes

Condenser Low Fin Tubes provide a reliable solution where optimal thermal performance, minimum equipment size, and energy efficiency are major considerations. Our low fin tubes are specially engineered with externally projected fins that maximize the surface area for an increased effective conductivity, leading to higher heat transfer rates and better performance efficiency.

We are one of the leading Condenser Low Fin Tube Manufacturer and Exporter all over the world and supplies integral low finned tubes to; condensers, heat exchangers, chillers, refrigeration, power, petrochemical, marine coolings, process equipment industries.

Understanding Integral Low Finned Tubes

The Integral Low Fin Tubes are formed by the plastic deformation of a parent tube. The fins are produced directly from the parent tube without any added joining of the fins to the tube. There is no possibility of the tube being separated from the fins because there are no bonding interfaces, so heat transfer coefficient is greatly enhanced.

The construction allows the tube's cross sectional area to remain unchanged and the overall surface area is amplified through the formation of the fins. Since the fins are produced from the tube wall directly, the resultant structure provides higher mechanical strength, greater corrosion resistance and longer durability in service.

Industry's favored for this technology due to efficiency vs cost benefits and suitability for both new equipment and retrofitting.

Table of Content



Why Condenser Low Fin Tubes Improve Heat Exchanger Performance


The objective of the low fin tube is to enhance the efficiency of heat transfer. External fins have increased the available heat transfer area by far greater value. Benefits include:

  •   Higher Thermal Efficiency: The enlarged surface area promotes faster heat transfer, allowing systems to operate more efficiently.
  •   Compact Equipment Design: Because heat transfer is improved, engineers can achieve the same thermal performance using smaller equipment footprints.
  •   Energy Savings: Improved efficiency often translates into lower energy consumption and reduced operating costs.
  •   Improved Condensation Rates: Low fin tubes are particularly effective in condensation applications where enhanced surface area accelerates heat removal.
  •   Reduced Material Requirements: Smaller heat exchanger designs can reduce overall material consumption and installation costs.

Condenser Low Fin Tube Specifications

Specification

Details

Product Name

Condenser Low Fin Tube
Tube Type
Integral Low Finned Tube
Standard
ASTM B359 Low Fin Tube
Fin Type
Integral / Extruded Low Fin
Tube Outside Diameter (Plain Tube)
12.7 mm to 31.75 mm
Tube Wall Thickness
0.7 mm to 3.0 mm
Fin Height
0.8 mm to 2.5 mm
Fin Pitch
10 FPI to 26 FPI (Fins Per Inch)
Fin Density
Customized as per application
Tube Length
Up to 25 Meters
Surface Enhancement Ratio
2.0 to 3.5 Times Plain Surface Area
Manufacturing Method
Cold Rolling / Mechanical Fin Forming
Operating Temperature
Up to 300°C (Depending on Material)
End Condition
Plain End, Beveled End, Customized
Testing
Hydrostatic, Eddy Current, PMI, Dimensional Inspection
Compliance
ASTM, ASME, TEMA, DIN, EN Standards
Supply Condition
Straight Lengths or U-Bent Tubes
Applications
Condensers, Heat Exchangers, HVAC, Chillers, Refrigeration Systems

Low Fin Tube Dimensional Range


Parameter Range
Base Tube OD 12.7 mm – 31.75 mm
Finned OD 15 mm – 40 mm
Tube Thickness 0.7 mm – 3.0 mm
Fin Height 0.8 mm – 2.5 mm
Fin Pitch 0.9 mm – 2.5 mm
Fins Per Inch (FPI) 10 – 26
Tube Length 1 Meter – 25 Meters
Surface Area Enhancement Up to 350%
Maximum Working Pressure As per Material & Design Code
Manufacturing Tolerance As per ASTM / ASME Standards

Technical Features of Enhanced Surface Condenser Tubes


Enhanced Surface Condenser Tubes are specifically engineered to maximize thermal performance in demanding industrial applications.

Feature Benefit
Integral Fin Design Eliminates fin separation risks
Increased Surface Area Higher heat transfer rates
Precision Manufacturing Consistent performance
Corrosion Resistance Longer equipment life
Low Fouling Tendency Reduced maintenance
Mechanical Strength Reliable operation under pressure

These features make low fin condenser tubing an ideal choice for high-efficiency thermal systems.

Applications of Low Fin Heat Exchanger Tubes


As a recognized Low Fin Heat Exchanger Tubes Manufacturer in India, we supply products for a wide range of industries.

  •   Power Generation Plants: Used in surface condensers and cooling systems to improve thermal efficiency.
  •   Petrochemical Industry: Supports process cooling and heat recovery operations.
  •   HVAC Systems: Enhances performance of air conditioning and refrigeration equipment.
  •   Marine Applications: Widely used in seawater cooling systems and marine condensers.
  •   Chemical Processing Plants: Suitable for corrosive environments requiring reliable heat transfer.
  •   Food & Beverage Industry: Used in temperature-sensitive process equipment.
  •   Oil & Gas Industry: Supports critical heat exchange operations in upstream and downstream facilities.
  •   Industrial Refrigeration: Improves condenser efficiency and reduces energy consumption.

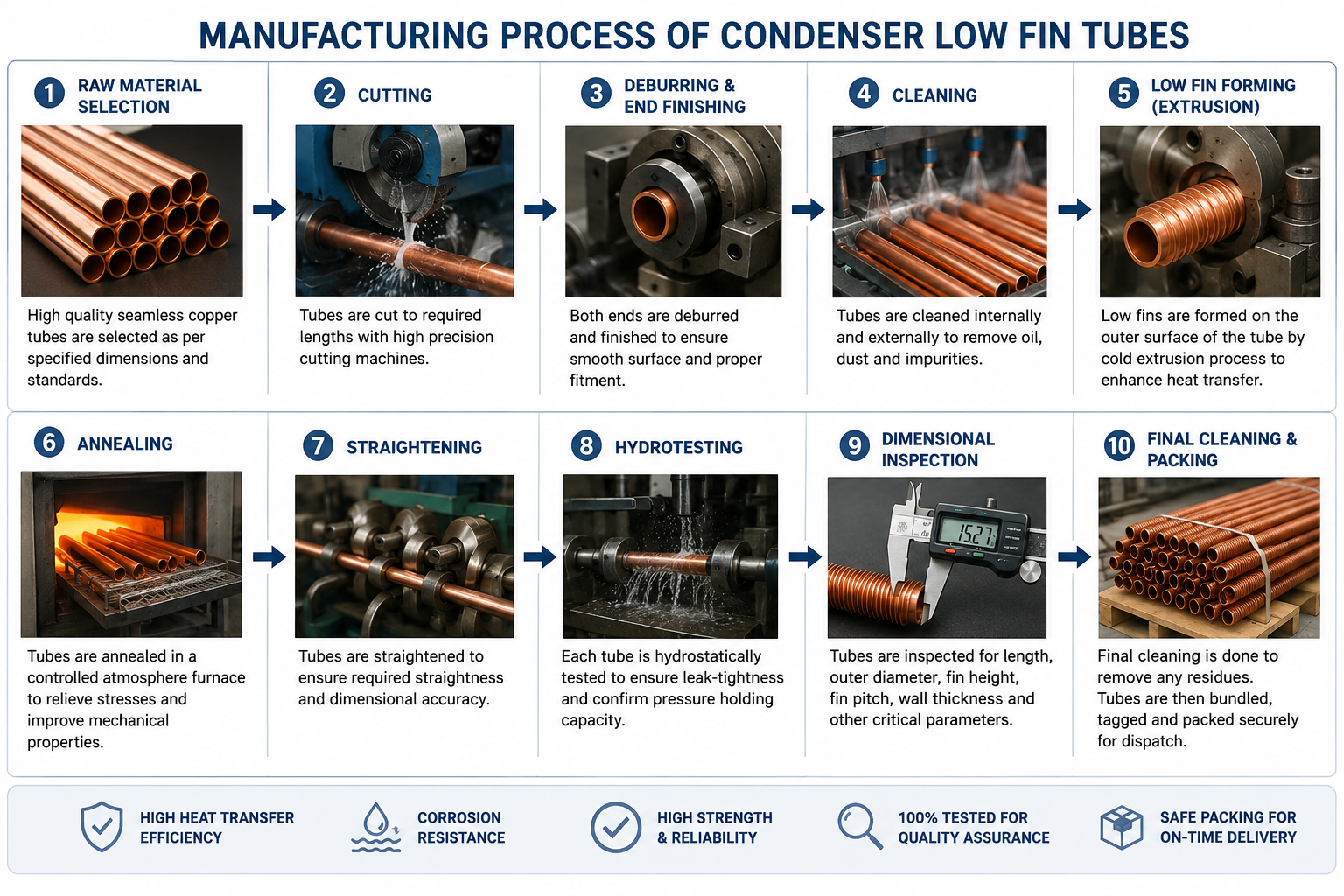

Manufacturing Process of Condenser Low Fin Tubes

Manufacturing Process of Condenser Low Fin Tubes

Advantages of Choosing a Global Condenser Low Fin Tube Exporter


As a trusted Condenser Low Fin Tube Exporter in Worldwide markets, we understand the performance requirements of international industries.

Customers benefit from:

  •    Global supply capabilities
  •    Consistent product quality
  •    Competitive pricing
  •    Custom manufacturing options
  •    Technical support
  •    Timely delivery schedules
  •    International standards compliance

Our products are supplied to customers across North America, Europe, the Middle East, Southeast Asia, Africa, and other global markets.

Available Tube Materials and Configurations


We offer low fin tubes in various materials and dimensions to meet diverse application requirements.

Materials Available:

  •   Copper Low Fin Tubes
  •   Copper Nickel Low Fin Tubes
  •   Aluminium Brass Low Fin Tubes
  •   Admiralty Brass Low Fin Tubes
  •   Stainless Steel Low Fin Tubes
  •   Titanium Low Fin Tubes
  •   Nickel Alloy Low Fin Tubes

Why Engineers Prefer Enhanced Surface Condenser Tubes


Engineers choose Enhanced Surface Condenser Tubes because they provide measurable improvements in heat transfer performance without requiring major system redesigns.

Key reasons include:

  •    Increased heat transfer coefficients
  •    Improved condenser efficiency
  •    Lower operating costs
  •    Space-saving designs
  •    Extended equipment life
  •    Reduced maintenance requirements
  •    Proven industrial reliability

These advantages make low fin technology a preferred solution in modern thermal engineering systems.
