V-Type Longitudinal Fin Tubes Manufacturer, Supplier & Exporter in India

V-Type Longitudinal Fin Tubes are constructed from the outer surface of the base tube which has been welded with V shaped longitudinal fins on the outer surface, and have highly improve heat transfer efficiency, thermal performance and used extensively in heat exchangers, boilers, economizers, waste heat recovery units, petrochemical industry, power generation and other fields. They are highly resistant for high temperature and high pressure.

Premium V-Type Longitudinal Fin Tubes for High-Efficiency Heat Transfer Applications

For applications where efficiency and performance of equipment are extremely crucial, selection of appropriate finned tube would be very important. Therefore we manufacture & supply a quality range of V-Type Longitudinal Fin Tubes for enhanced heat transfer in critical industrial applications and maintaining robustness and integrity in hostile environments.

We are a trusted Longitudinal Finned Tubes Supplier and offer precisely engineered finned tubes which are ideally used for heat recovery applications, process heaters, air heaters, condensers, boilers, etc. Industrial heat exchangers and others, where enhanced external surface area is required to increase the overall heat transfer performance and minimize the operating cost.

Manufactured through latest welding technology with rigorous quality control process to ensure high and reliable performance even under extreme temperatures, corrosive environment and long hours of operation.

What Are V-Type Longitudinal Fin Tubes?

V-Type Longitudinal Fin Tubes, they are also known as, have their V-shaped fins attached along the longitudinal direction over the surface of a bare tube. Unlike conventional spirally fins, where the fins are helically wound along the tube length, these V-type longitudinal fins are directly arranged along the length of the tube providing longer heat transfer surfaces, thereby increasing the heat transfer performance.

The V-shape of the fin aids in distributing flow and creating turbulence, thus increasing the heat transfer coefficient values. The efficiency is significantly high for gas side heat transfer applications, where it's needed to increase the effective surface area for transferring heat. We, as an experienced V-Fin Longitudinal Tubing Manufacture in India supply these finned tubes in numerous materials, fin configurations and dimensions depending on the industrial requirements.

Key Characteristics

  •   Increased heat transfer surface area
  •   Excellent thermal conductivity
  •   Low pressure drop
  •   Strong fin-to-tube bonding
  •   High mechanical strength
  •   Suitable for high-temperature service
  •   Long operational life
  •   Corrosion-resistant material options

Table of Content



How V-Type Longitudinal Fin Tubes Improve Heat Transfer Efficiency


The primary function of longitudinal fins is to increase the effective heat transfer area without significantly increasing equipment size.

The V-shaped fin geometry offers several performance advantages:

  •   Enhanced Surface Area: Additional fin surfaces expose more area to the surrounding fluid or gas, improving heat exchange efficiency.
  •   Better Airflow Distribution: The V-profile helps create controlled turbulence, increasing convective heat transfer rates.
  •   Improved Thermal Performance: Heat is efficiently conducted from the base tube to the fins, maximizing energy transfer.
  •   Reduced Equipment Footprint: Higher thermal efficiency allows designers to achieve desired performance using smaller heat exchanger systems.

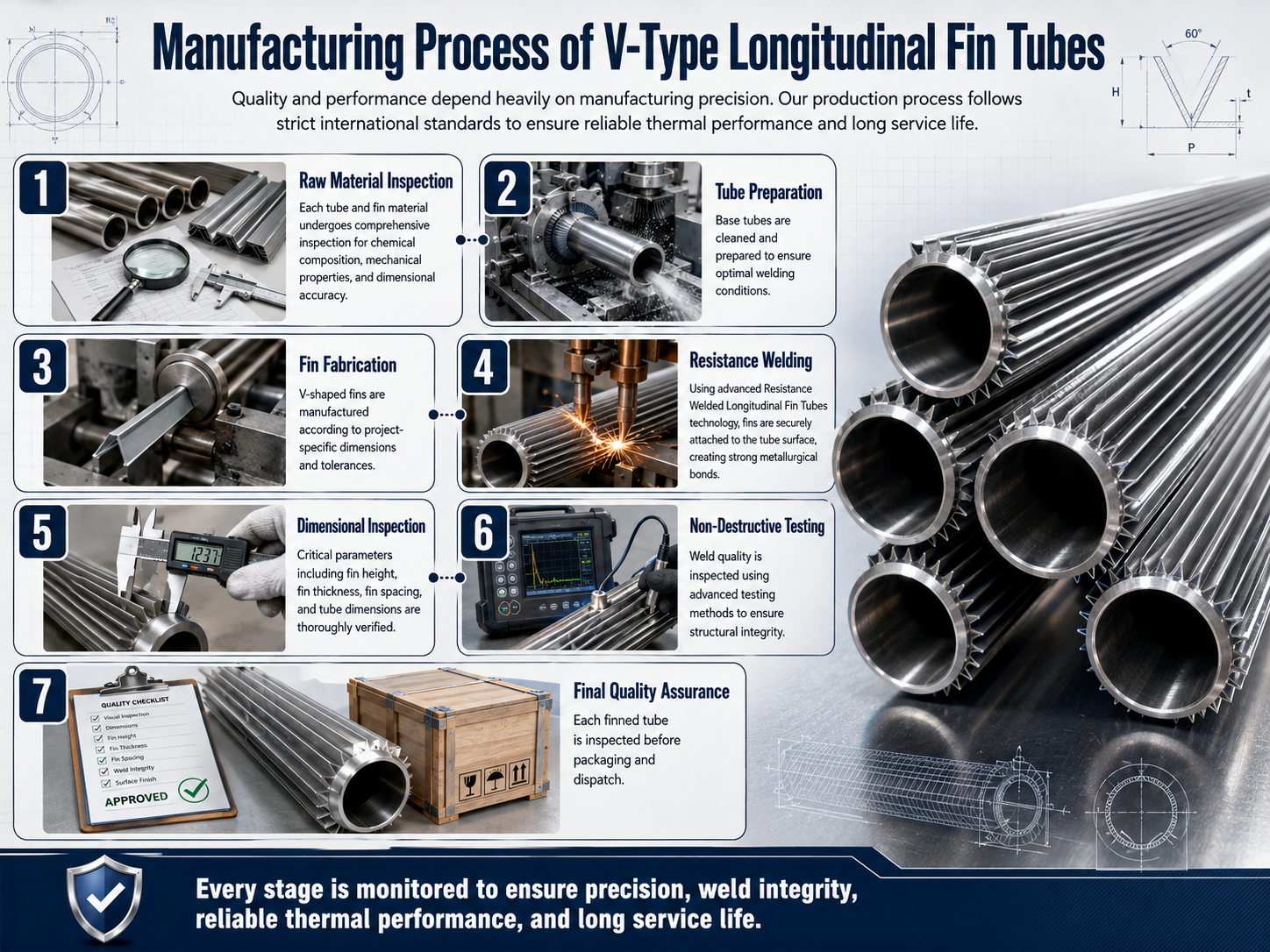

Manufacturing Process of V-Type Longitudinal Fin Tubes


V-Type Longitudinal Fin Tubes

Types of Longitudinal Finned Tubes We Supply


We manufacture multiple configurations to suit various heat transfer applications.

V-Type Longitudinal Fin Tubes

Ideal for air heaters, waste heat recovery systems, and gas coolers.

I-Type Longitudinal Fin Tubes

Straight fin configuration offering excellent heat transfer characteristics.

Stainless Steel I-Type Longitudinal Fin Tubes

Designed for corrosive environments requiring superior durability and long service life.

Zigzag Serrated Fin Tubes

Specialized fin profile designed to create enhanced turbulence and maximize heat transfer efficiency in demanding thermal systems.

V-Type Longitudinal Fin Tubes Specification Chart

Parameter

Specification

Tube OD

19 mm to 114.3 mm
Tube Thickness
1.5 mm to 12 mm
Tube Length
Up to 18 Meters
Fin Height
5 mm to 50 mm
Fin Thickness
0.8 mm to 5 mm
Number of Fins
2, 4, 6, 8, 10, 12
Fin Pitch
Customized
Welding Method
Resistance Welding
Operating Temperature
Up to 750°C
Operating Pressure
As Per Design Requirements
Manufacturing Standard
ASTM, ASME, DIN, EN
Surface Finish
Mill Finish, Pickled, Passivated

Materials Available for V-Type Longitudinal Fin Tubes


We manufacture finned tubes in a wide range of materials:

Carbon Steel

  •   ASTM A179
  •   ASTM A192
  •   ASTM A210

Stainless Steel

  •   SS 304
  •   SS 304L
  •   SS 316
  •   SS 316L
  •   SS 321
  •   SS 347

Alloy Steel

  •   ASTM A213 T11
  •   ASTM A213 T22
  •   ASTM A213 T91

Copper Alloys

  •   Copper
  •   Copper Nickel
  •   Aluminium Brass

Nickel Alloys

  •   Monel
  •   Inconel
  •   Incoloy
  •   Hastelloy

Applications of V-Type Longitudinal Fin Tubes


These finned tubes are widely used across industries requiring efficient heat transfer.

  •   Power Generation Plants: Used in economizers, air preheaters, and heat recovery units.
  •   Petrochemical Industry: Suitable for process heaters, condensers, and gas cooling systems.
  •   Oil & Gas Processing: Used in offshore and onshore thermal systems.
  •   Chemical Processing Plants: Reliable performance in corrosive environments.
  •   Waste Heat Recovery Systems: Enhances energy efficiency by recovering process heat.
  •   Industrial Boilers: Improves boiler efficiency through optimized heat exchange.
  •   HVAC Systems: Used in specialized heating and cooling equipment.

Advantages of Choosing Our V-Type Longitudinal Fin Tubes


  •   Superior Heat Transfer Performance: Designed to maximize thermal efficiency and system productivity.
  •   Strong Weld Integrity: Advanced resistance welding ensures long-term reliability.
  •   Custom Manufacturing: Available in customized dimensions, materials, and fin configurations.
  •   Corrosion Resistance: Suitable material options for aggressive operating environments.
  •   Reduced Energy Consumption: Improved heat transfer contributes to lower operating costs.
  •   International Quality Standards: Manufactured according to ASTM, ASME, DIN, and customer specifications.
  •   Technical Support: Expert assistance for material selection, design requirements, and application optimization.

Why Industries Prefer Resistance Welded Longitudinal Fin Tubes


Resistance welding provides several advantages over mechanical attachment methods:

  •   Strong metallurgical bond
  •   Excellent heat conduction
  •   Improved durability
  •   Enhanced vibration resistance
  •   Consistent weld quality
  •   Long service life
  •   Reduced maintenance costs

This makes Resistance Welded Longitudinal Fin Tubes the preferred choice for critical heat transfer applications.

Buy V-Type Longitudinal Fin Tubes from a Trusted Supplier


Selecting the right finned tube supplier directly impacts equipment performance and operational reliability. We manufacture and supply precision-engineered V-Type Longitudinal Fin Tubes that meet demanding industrial requirements worldwide.

Our engineering team works closely with customers to provide customized fin tube solutions based on application conditions, operating temperatures, pressure requirements, and material specifications.

Whether you need standard designs or project-specific configurations, we can supply high-quality finned tubes with reliable lead times and competitive pricing.
