Cupro Nickel 95/5 Sheets & Plates – Supplier, Stockist
and Exporter in Mumbai, India

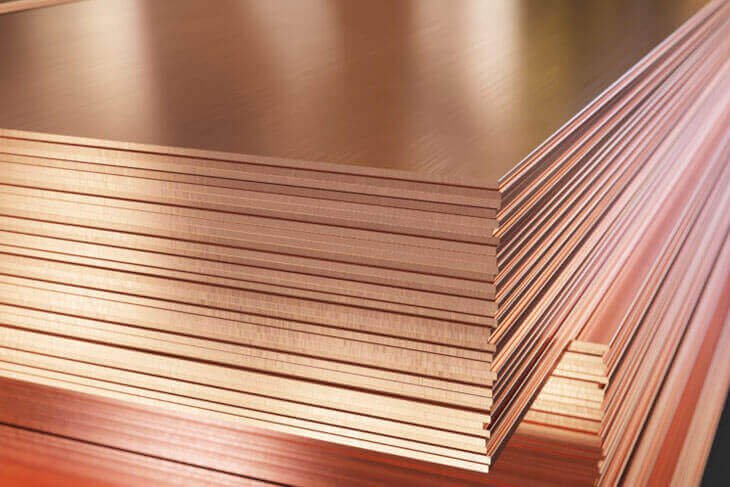

Cupro Nickel 95/5 (UNS C70400) Sheets & Plates to ASTM B122

95/5 cupro-nickel (UNS C70400) contains about 93% copper, 5.5% nickel, 1.5% iron and 0.5% manganese. It offers much of the corrosion resistance of 90/10 cupro-nickel at a lower cost.


Table of Content



Properties and Uses of Cupro Nickel 95/5 Sheets & Plates

95/5 cupro-nickel has good resistance to seawater and fresh-water corrosion, high thermal conductivity and good formability.

Where not to use it: For high-velocity or polluted seawater, choose 90/10 cupro-nickel or 70/30 cupro-nickel.

Testing, Documentation and Packaging

Every lot of Cupro Nickel 95/5 sheets & plates is inspected before dispatch. Typical tests include chemical analysis / PMI, tensile and hardness testing, bend testing, ultrasonic testing of plates where required, and checks of thickness and flatness. Third-party inspection can be arranged on request.

Material is supplied with a mill test certificate to EN 10204 3.1, together with the raw-material report and inspection reports. For export orders it is interleaved with protective paper and packed on fumigated wooden pallets or in wooden cases, with a fumigation certificate included.


CUPRO NICKEL 90/10 SHEETS & PLATES

Equivalent Grades


STANDARD WERKSTOFF NR. UNS
CuNi 95/5 - C70400

Standard Specification for Cupro Nickel 95/5 Sheets / Plates

Specifications

ASTM B122 / ASME SB122, ASTM B171 / ASME SB171

Size Range

-

Thickness

1mm – 100mm

WIDTH & LENGTH

1000mm – 3000mm

Form

Sheet, Plate, Strip, Flats, Clad Plate, Coils, Foils, Plain Sheet, Flat Shim, Flat Sheet, Shim Sheet, Rolling Sheet, Rolling Plate, Rolls, Blank (Circle)

Finish

2B, 2D, BA NO (8), Cold rolled sheet, Hot rolled plate, No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc.

Other Types of Cupro Nickel 95/5 Sheets & Plates

SS 304 Chequered Plates

Cupro Nickel 95/5 Chequered Plates

Chequered plates with a raised pattern for anti-slip flooring and platforms.
SS 304 Perforated Sheets

Cupro Nickel 95/5 Perforated Sheets

Perforated sheets for screens, filters and architectural work.

SS 304 Shim Sheets

Cupro Nickel 95/5 Shim Sheets

Thin shim sheets for precise spacing and alignment.
SS 304 Coils

Cupro Nickel 95/5 Coils

Coils for continuous processing and slitting to width.

SS 304 Foils

Cupro Nickel 95/5 Foils

Thin-gauge foils for electrical, shielding and gasket applications.
SS 304 Strips

Cupro Nickel 95/5 Strips

Strips slit to width for stamping, forming and electrical parts.

Chemical Composition

GradeCuNiFeMnPbZn
UNS C70400Rem.4.8 – 6.21.3 – 1.70.30 – 0.80.05 max1.0 max

Mechanical Properties

Density Tensile Strength Yield Strength (0.2%Offset) Elongation
0.323 lb/in³ (8.94 g/cm³) 240 MPa 100 MPa 30 %

Available Forms


SheetsPlates
CoilsStrips
Shim sheets and foilsPerforated sheets
Chequered platesCut-to-size pieces

Applications of Cupro Nickel 95/5 Sheets & Plates


  •   Condenser and heat-exchanger tubes
  •   Marine cooling systems
  •   Hydraulic and brake lines
  •   Evaporators
  •   Desalination plants
  •   Offshore cooling water lines
