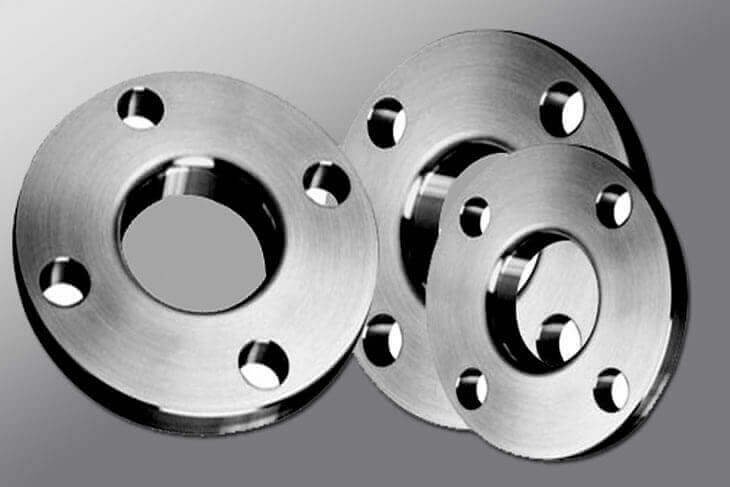

F11 Chrome-Moly Flanges for Refinery and Power Plant Piping
ASTM A182 / ASME SA182 F11 is a forged 1¼Cr-½Mo chrome-moly alloy steel supplied in Class 1 (UNS K11597), Class 2 or Class 3 (UNS K11572). Class 2, normalised and tempered to 485 MPa minimum tensile and 275 MPa minimum yield, is the usual choice for piping flanges matched to A335 P11 pipe and dimensioned to ASME B16.5 or B16.47.
Dinesh Tube India supplies F11 weld neck, slip-on, socket weld, blind, lap joint, threaded and ring type joint flanges from Mumbai, with EN 10204 3.1 mill test certificates and third-party inspection on request.
Table of Contents
- What Is F11?
- Class 1, 2 or 3?
- Flange Types and Dimension Standards
- Pressure Class and Rating
- Facing, Bolting and Gaskets
- Heat Treatment and Hardness
- Chemical Composition
- Mechanical Properties
- Tests and Certification
- Matching Pipe, Fittings and Plate
- Equivalent Grades
- Specification
- How to Order: RFQ Example
- Where They Are Used
- FAQs
What Is F11 and How Does It Compare With F22 and F5?
F11 contains 1.00 – 1.50% chromium, 0.44 – 0.65% molybdenum and 0.50 – 1.00% silicon. It gives better creep strength and oxidation resistance than carbon steel and is the most widely used chrome-moly flange grade for steam, hydrocarbon and process piping up to about 540 – 565 °C, alongside A335 P11 pipe.
| Grade | Type | Tensile / yield min | Matching pipe |
|---|---|---|---|
| F11 Class 2 | 1¼Cr-½Mo | 485 / 275 MPa | A335 P11 |
| F22 Class 3 | 2¼Cr-1Mo | 515 / 310 MPa | A335 P22 |
| F5 | 5Cr-½Mo | 485 / 275 MPa | A335 P5 |
The grades sit in different ASME B16.5 material groups and are not interchangeable without design approval.


F11 Class 1, 2 or 3: Which Should You Order?
State the class on every order; a flange marked F11 without a class should not be assumed to be Class 2.
Which Flange Types and Dimension Standards Are Available?
F11 Weld Neck Flanges
F11 Slip-On Flanges
F11 Socket Weld Flanges
F11 Blind Flanges
F11 Threaded Flanges
F11 RTJ Flanges
How Is the Pressure Class and Rating Set?
Which Facing, Bolting and Gaskets Should You Specify?
What Heat Treatment Applies?
F11 Chemical Composition by Class (%)
Limits per ASTM A182.
F11 Mechanical Properties by Class
Per ASTM A182. Actual values are reported on the mill test certificate.
Which Tests and Certification Apply?
Which Pipe, Fittings and Plate Match F11 Flanges?
What Are the F11 Equivalent Grades?
European designations are close to A182 F11 but not identical; F11 has a higher silicon range; name the standard you need on the order.
A182 F11 Flange Specification
Material
Dimensions
Size
Class / PN
Types
Facing
Condition
Certification
How to Order F11 Flanges: RFQ Example
A complete enquiry lets us quote in one round. Replace the values with your own.
Send your F11 flange RFQ in this format to kamlesh@dineshtube-india.com, call or WhatsApp +91 83559 10913, or send an enquiry.
Where Are F11 Flanges Used?
Other chrome-moly flange grades: F5, F9, F22 and F91. See all alloy steel flanges.
A182 F11 Flanges: FAQs
What is an A182 F11 flange?
An A182 F11 flange is forged from 1¼Cr-½Mo chrome-moly alloy steel and supplied in Class 1, 2 or 3. It matches A335 P11 pipe and is the most common chrome-moly flange grade in refinery and power plant piping.
What is the difference between F11 Class 1, 2 and 3?
Class 1 (UNS K11597) has lower carbon and requires 415 MPa tensile and 205 MPa yield. Classes 2 and 3 (UNS K11572) have higher carbon and manganese; Class 2 requires 485 / 275 MPa and Class 3 requires 515 / 310 MPa. Each class has its own hardness range, so the class must be stated on the order.
Which F11 class is used for B16.5 flanges?
ASME B16.5 and B16.47 list A182 F11 Class 2 in Material Group 1.9 (1¼Cr-½Mo-Si). Class 2 is therefore the usual choice for standard piping flanges; the pressure-temperature rating comes from the Group 1.9 table at your design temperature.
What hardness should F11 flanges have?
ASTM A182 sets a hardness range for each class: about 121–174 HBW for Class 1, 143–207 HBW for Class 2 and 156–207 HBW for Class 3. Check the range against the A182 edition named in your order.
Which pipe and fittings match F11 flanges?
F11 flanges match ASTM A335 P11 pipe, A234 WP11 fittings, A213 T11 tube, A387 Grade 11 plate and A217 WC6 castings.
Are you a chrome-moly F11 flange manufacturer?
Dinesh Tube India is a Mumbai-based supplier, stockist and exporter of A182 F11 flanges. We source them from qualified forging and machining sources and supply them with the mill test certificate and inspection you specify.
What should an F11 flange enquiry include?
State ASTM A182 or ASME SA182 F11 with Class 1, 2 or 3, flange type, size, class or PN, facing, bore or pipe schedule for weld neck and socket weld flanges, quantity, tests (hardness, PMI, UT if required) and documents (EN 10204 3.1, 3.2 or third-party inspection).
Export Destinations for F11 Flanges
We supply A182 F11 flanges from Mumbai within India and export to refinery, petrochemical and EPC projects in the Middle East, Africa, Asia, Europe and the Americas. Tell us your destination port when you enquire.
