Internal Low Fin Tube Manufacturer & Supplier

Internal Low Fin Tube is a type of heat transfer tube with small internal fins (or internal groove) which enlarge the internal surface area and enhance turbulence of the fluid. This type of Internally Enhanced Finned Tube provides significant improvements to heat transfer efficiency, reduces size and space, save energy and widely applied to condenser, evaporator, heat exchanger, refrigerating industry, and power plant.

Introduction to Internal Low Fin Tube

A key target in contemporary thermal engineering systems is to enhance heat transfer efficiency whilst lowering operating costs. One of the most efficient solutions to fulfill this target is the Internal Low Fin Tube. These meticulously engineered tubes are precisely formed to incorporate internally located fins or grooves, enhancing the effective surface area and inducing turbulence in the fluid flow inside the tube.

As an experienced Low Fin Tube Manufacturer, we provide high performance Internally Enhanced Finned Tubes suited for a broad range of heat exchangers, condensers, chillers, refrigeration systems, petrochemical plants, marine applications and power generation applications.

Our portfolio of Internally Enhanced Finned Tubes, Internally grooved tubes and Seamless Internally Enhanced Tubes manufactured in accordance with high specifications assure higher thermal efficiency and lower energy consumption over long service periods, even in tough working conditions.

What is an Internal Low Fin Tube?

An Internal Low Fin Tube is a tube that contains multiple low-height fins, grooves, or enhanced surface geometries on the inner diameter. Unlike conventional smooth tubes, these internal enhancements create greater contact between the process fluid and the tube surface.

The result is:

  •   Improved heat transfer coefficient
  •   Increased thermal performance
  •   Enhanced fluid mixing
  •   Reduced fouling tendency
  •   Lower pressure drop compared to high-fin designs
  •   Compact heat exchanger design

These tubes are commonly known as:

  •   Internally Enhanced Finned Tubes
  •   Internally Enhanced Fin Tubes
  •   Internally Finned Tubes
  •   Internally Enhanced Tubes
  •   Enhanced Surface Tubes
  •   Internally Grooved Tubes

Table of Content



How Internally Enhanced Finned Tubes Improve Heat Transfer


The internal fins act as turbulators, thus disrupting the boundary layer that is naturally created along the length of a tube during flow. As a result:

  •   Increased Surface Area: Additional finned surfaces provide more contact area between fluid and metal.
  •   Enhanced Turbulence: The internal grooves create controlled turbulence that improves heat transfer rates.
  •   Better Fluid Distribution: The fin geometry promotes uniform flow patterns across the tube cross-section.
  •   Reduced Equipment Size: Higher heat transfer efficiency enables smaller and lighter heat exchangers.
  •   Lower Energy Consumption: Improved thermal performance reduces pumping and operational costs.

Internal Low Fin Tube Specifications

Parameter

Range

Tube OD

12.7 mm – 50.8 mm
Tube Thickness
0.5 mm – 5 mm
Tube Length
Up to 18 meters
Fin Height
0.1 mm – 1.5 mm
Fin Pitch
Customized
Tube Type
Seamless / Welded
Fin Configuration
Helical, Straight, Grooved
Surface Finish
Bright Annealed, Pickled, Polished
Manufacturing Standard
ASTM, ASME, EN, DIN, JIS

Materials Available for Internal Low Fin Tubes


We manufacture Internally Enhanced Finned Tubes in a wide variety of materials to suit different operating environments.

Copper Internally Grooved Tubes

Copper internally grooved tubes are widely used in HVAC, refrigeration, and air-conditioning systems because of their excellent thermal conductivity and corrosion resistance.

Applications include:

  •   Air conditioners
  •   Evaporators
  •   Refrigeration coils
  •   Condensers
  •   Heat pumps

Internally Finned Cupro-Nickel Tubes

Internally finned cupro-nickel tubes offer outstanding resistance to seawater corrosion and biofouling, making them ideal for marine and offshore environments.

Benefits include:

  •   Superior seawater resistance
  •   Long service life
  •   Excellent thermal conductivity
  •   Reduced maintenance requirements

Other Material Grades

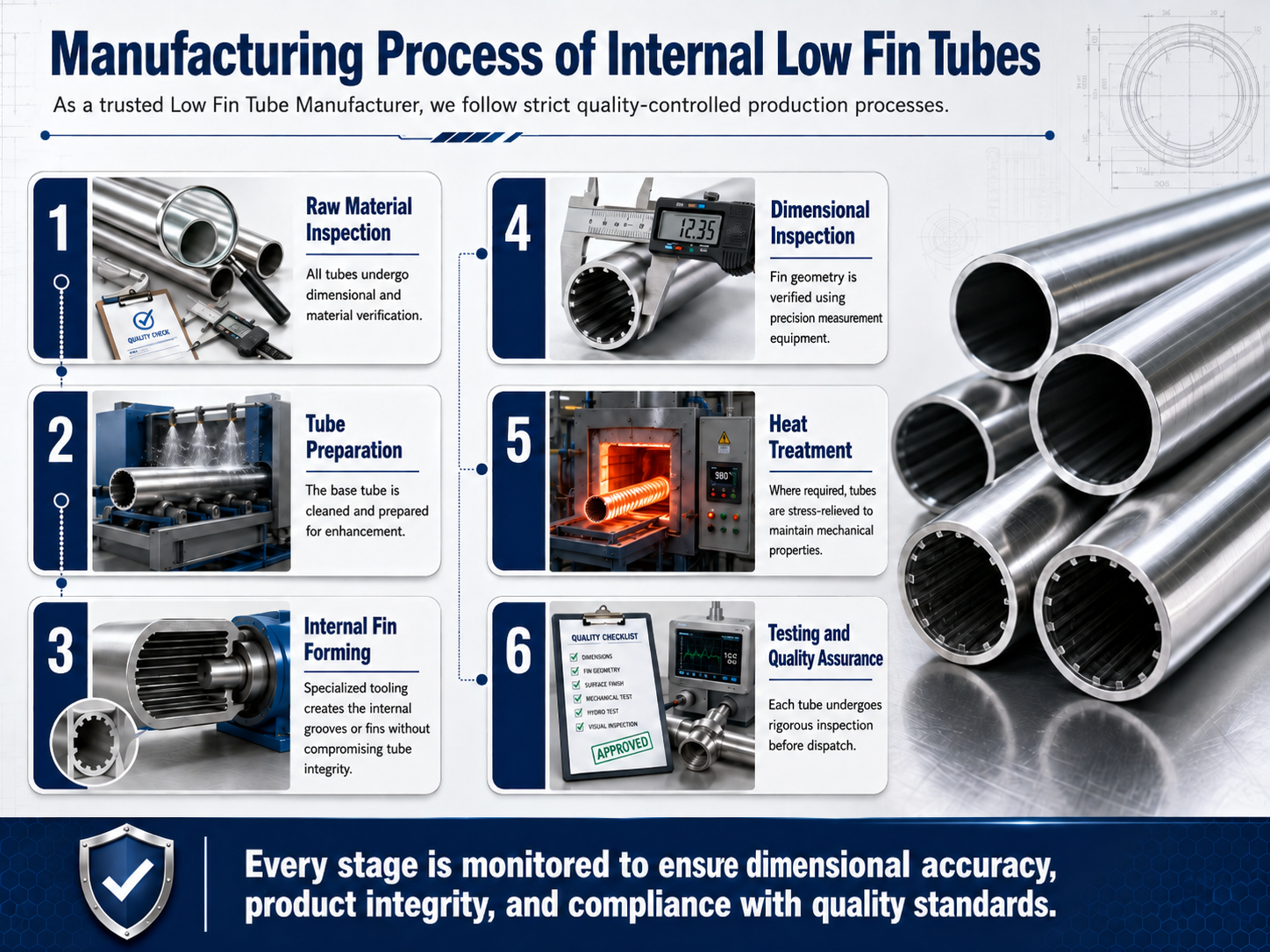

Manufacturing Process of Internal Low Fin Tubes


Internal Low Fin Tube

Advantages of Internally Enhanced Tubes


Organizations across multiple industries choose Internally Enhanced Tubes because of their significant performance benefits.

  •   Superior Heat Transfer Performance: The increased internal surface area boosts heat exchange efficiency.
  •   Energy Savings: Improved thermal performance reduces operating costs.
  •   Compact Equipment Design: Smaller heat exchangers can achieve the same thermal duty.
  •   Reduced Fouling: Enhanced fluid movement minimizes deposit formation.
  •   Extended Equipment Life: Optimized thermal operation reduces mechanical stress on systems.
  •   Cost Efficiency: Lower energy consumption results in long-term operational savings.

Applications of Internal Low Fin Tubes


  •   Heat Exchangers: Widely used in shell and tube heat exchangers to improve heat transfer rates.
  •   Condensers: Enhance condensation efficiency in power plants and industrial cooling systems.
  •   Evaporators: Improve refrigerant evaporation performance.
  •   HVAC Systems: Commonly used in modern air-conditioning and refrigeration equipment.
  •   Petrochemical Industry: Suitable for demanding thermal processing applications.
  •   Marine Industry: Internally finned cupro-nickel tubes are preferred for seawater cooling systems.
  •   Power Generation Plants: Improve thermal efficiency and reduce plant operating costs.

Quality Testing of Seamless Internally Enhanced Tubes


Our Seamless Internally Enhanced Tubes undergo extensive testing to ensure reliability and performance.

Testing includes:

  •   Visual Inspection
  •   Dimensional Inspection
  •   Hydrostatic Testing
  •   Eddy Current Testing
  •   PMI Testing
  •   Hardness Testing
  •   Flattening Test
  •   Flaring Test
  •   Mechanical Property Testing
  •   Surface Roughness Analysis

Why Partner with us as your Internal Low Fin Tube Manufacturer?


Choosing the right manufacturing partner directly impacts equipment performance and project success.

  •   Industry Expertise: Years of experience in manufacturing enhanced heat transfer tubing.
  •   Advanced Manufacturing Facilities: Modern equipment ensures precision fin formation.
  •   Global Supply Capability: Reliable deliveries for projects worldwide.
  •   Custom Manufacturing: Tailored dimensions, fin configurations, and material grades.
  •   Strict Quality Control: Every product is manufactured according to international standards.
  •   Technical Support: Our engineering team assists customers in selecting the most suitable tube design for their applications.
