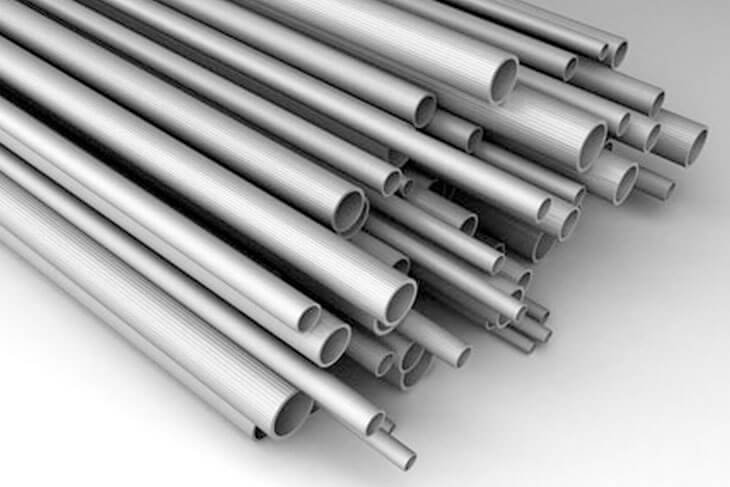

Titanium Grade 2 (UNS R50400) Welded and Seamless Condenser and Heat Exchanger Tubes to ASTM B338
Dinesh Tube India supplies and exports titanium Grade 2 tubes from Mumbai for seawater condensers, heat exchangers and coolers in power, desalination, refinery and chemical plants. Our Grade 2 (UNS R50400, Werkstoff 3.7035) tubes are commercially pure titanium, made to ASTM B338 / ASME SB338, welded or seamless, sized by outside diameter and wall thickness, and supplied with EN 10204 3.1 mill test certificates.
Grade 2 is the standard titanium condenser tube. It is practically immune to seawater corrosion and erosion, so thin walls with no corrosion allowance can be used, giving good heat transfer and long service life. For all grades and condenser sizes, see our titanium tubes page.


Titanium Grade 2 Tube Weight Table (kg/m)
Weight (kg/m) = (OD − wall) × wall × 0.01417, using titanium density 4.51 g/cm³. Other OD and wall combinations on request.
Welded vs Seamless Grade 2 Tube
Grade 2 vs Grade 12 vs Grade 7 Tube
Titanium Grade 2 Tube Chemical Composition (ASTM B338, %)
Titanium Grade 2 Tube Mechanical Properties (Minimum)
Check the current ASTM B338 edition (B338-17, reapproved 2026) and the mill certificate for governing values.
Why Grade 2 Is the Standard Condenser Tube
Step up to Grade 12 for hot brines where crevice corrosion under deposits is a risk, and to Grade 7 where dilute reducing acids are present. Like all titanium, Grade 2 is not suitable for hydrofluoric acid, fluorides or dry chlorine gas.
Need Grade 2 titanium tubes? Send the OD, wall (BWG or mm), length, welded or seamless, straight or U-bent, quantity and service conditions to kamlesh@dineshtube-india.com or call +91 83559 10913. You can also send an enquiry.
Fabrication Notes
Titanium Grade 2 Tube Applications
Titanium Grade 2 Tubes: FAQs
Which standard covers titanium Grade 2 tubes?
Titanium Grade 2 tubes for condensers and heat exchangers are made to ASTM B338 (ASME SB338), which covers seamless and welded titanium tube sized by outside diameter and wall thickness.
Why is Grade 2 used for condenser tubes?
Grade 2 is practically immune to seawater corrosion and erosion, so thin walls with no corrosion allowance can be used. It is the standard titanium grade for seawater-cooled condensers and coolers.
Are Grade 2 tubes welded or seamless?
Both are available. Welded tube is the most common choice for condensers and heat exchangers because of its uniform thin wall and lower cost; seamless tube is used for higher-pressure and small-bore duties.
What is the difference between titanium tube and titanium pipe?
Titanium tube to ASTM B338 is ordered by OD and wall thickness (often BWG) and used in heat-exchanger bundles. Titanium pipe to ASTM B861 / B862 is ordered by NPS and schedule for process piping.
How much does a titanium Grade 2 tube weigh?
Weight in kg/m = (OD − wall) × wall × 0.01417, with OD and wall in mm. For example, a 25.4 × 0.71 mm (BWG 22) tube weighs about 0.25 kg/m.
When should I use Grade 12 tubes instead of Grade 2?
Use Grade 12 for hot brines where crevice corrosion under deposits or at tubesheet joints is a risk. For ordinary seawater condensers, Grade 2 is usually enough and costs less.
What is the price of titanium Grade 2 tubes?
The price depends on OD, wall, length, welded or seamless, U-bending, quantity and certification. Send your requirement to kamlesh@dineshtube-india.com or call +91 83559 10913 for a current quote.
Export Destinations for Titanium Grade 2 Tubes
We supply titanium Grade 2 tubes across India to heat-exchanger fabricators and power, desalination, refinery and chemical plants in Gujarat, Maharashtra, Tamil Nadu, Andhra Pradesh and Odisha, and export to the Middle East (UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain), Asia (Japan, South Korea, Singapore, Malaysia, Vietnam, Indonesia, Bangladesh), Africa (Egypt, Nigeria, South Africa) and Europe on request.
