ASTM A606 Type 4 Corten Tubes Supplier

Light-Gauge ERW Tubes Made from ASTM A606 Type 4 Weathering Strip

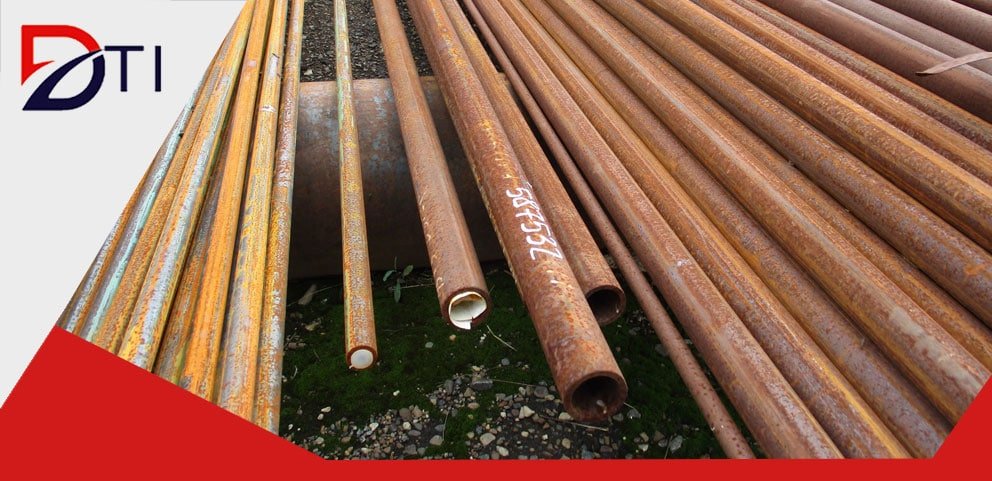

Dinesh Tube India supplies ASTM A606 Type 4 Corten tubes from Mumbai to railing, gate and pergola fabricators, furniture makers, bus and truck body builders, and architects. These are electric-resistance-welded (ERW) round, square and rectangular tubes formed from A606 Type 4 high-strength low-alloy weathering steel strip, so the finished tube weathers to the same rust-brown patina as Corten sheet.

Important: ASTM A606 is a specification for sheet and strip, not for tubes. An "A606 tube" is a welded tube made from A606-certified strip, and the mill certificate covers the strip. Where a project needs tubing certified to a structural tube standard, order ASTM A847. For all Corten tube grades, see Corten steel pipes and tubes.

Table of Contents

What Is ASTM A606 Type 4?
Tube Specification
Chemical Composition
Mechanical Properties
A606 vs A847 vs A423
Common Sizes
Applications
FAQs

What Is ASTM A606 Type 4?

ASTM A606 / A606M covers high-strength low-alloy, hot-rolled and cold-rolled sheet and strip with improved atmospheric corrosion resistance, in cut lengths or coils, for structural and other applications. It has two types:

Type 2: contains at least 0.20% copper, giving roughly twice the atmospheric corrosion resistance of plain carbon steel
Type 4: enhanced weathering steel with a corrosion-resistance index of at least 6.0 (ASTM G101), the Corten-type grade used for unpainted tube

Formed into ERW tube, A606 Type 4 gives a light, unpainted, rust-finish section for railings, frames and furniture. It is not stainless steel and is not intended for pressure, marine immersion or chemical service.

ASTM A606 Chemical Composition (Heat Analysis, %)

Type	C, max	Mn, max	S, max	Cu	Other
Type 2	0.22	1.25	0.04	0.20 min	–
Type 4	0.22	1.25	0.04	As needed	Cr, Ni, Cu, P as needed for corrosion index ≥ 6.0 (G101)

ASTM A606 sets only a few chemistry limits; mills add copper, chromium, nickel and phosphorus to meet the Type 4 corrosion index. The mill certificate shows the actual analysis. Check the current A606 / A606M edition for governing values.

ASTM A606 Mechanical Properties (Strip)

Condition	Min Yield	Min Tensile	Min Elongation (50 mm)
Hot-rolled, as-rolled, cut lengths	345 MPa (50 ksi)	485 MPa (70 ksi)	22%
Hot-rolled, as-rolled, coils	310 MPa (45 ksi)	450 MPa (65 ksi)	22%
Hot-rolled annealed / normalised, or cold-rolled	310 MPa (45 ksi)	450 MPa (65 ksi)	22%

These are strip properties. Cold forming and welding into tube changes yield strength slightly; ask for tube test results if your design depends on them.

ASTM A606 vs A847 vs A423 Corten Tubes

Point	A606 Type 4 tube	ASTM A847	ASTM A423 Gr 1
Specification covers	The strip	The finished structural tube	The finished heat-transfer tube
Typical sizes	Light gauge, small sections	Structural round, SHS, RHS	Round tubes for air preheaters
Min yield	310–345 MPa (strip)	345 MPa	255 MPa
Best for	Railings, frames, furniture	Bridges, building frames	APH cold end, heat recovery

Common A606 Corten Tube Sizes

Shape	Size Range	Wall
Round	19 mm – 101.6 mm OD	1.5 – 4 mm
Square	20 × 20 mm – 100 × 100 mm	1.5 – 5 mm
Rectangular	40 × 20 mm – 150 × 100 mm	1.5 – 5 mm

Availability depends on strip stock and quantity. Send the shape, size, wall, length and quantity to confirm.

Need A606 Corten tubes? Send the shape, size, wall, length, quantity and delivery location to kamlesh@dineshtube-india.com or call +91 83559 10913. You can also send an enquiry.

ASTM A606 Corten Tube Applications

Handrails, balustrades and gates
Pergolas, canopies and garden structures
Outdoor furniture and planters
Bus, truck and trailer body frames
Facade sub-frames and screens
Frames for Corten signage

Architectural and transport uses of A606 Corten tubes

Seal or drain closed tube ends so water does not collect inside. For Corten sheet to match, see Corten steel plates and sheets.

ASTM A606 Corten Tubes: FAQs

What is ASTM A606 Type 4?

ASTM A606 Type 4 is a high-strength low-alloy weathering steel supplied as hot-rolled or cold-rolled sheet and strip. It must have a corrosion-resistance index of at least 6.0 under ASTM G101, so it forms a protective Corten-type patina outdoors.

Is there an ASTM A606 tube specification?

No. ASTM A606 covers sheet and strip only. "A606 tubes" are ERW tubes formed and welded from A606-certified strip, and the mill certificate covers the strip. For tubing certified to a structural tube standard, order ASTM A847.

What is the difference between A606 Type 2 and Type 4?

Type 2 contains at least 0.20% copper and gives roughly twice the atmospheric corrosion resistance of plain carbon steel. Type 4 is an enhanced weathering steel with a G101 corrosion index of at least 6.0, and is the grade used for unpainted Corten-look tubes.

What is the yield strength of ASTM A606?

For hot-rolled, as-rolled cut lengths the minimum is 345 MPa (50 ksi) yield and 485 MPa (70 ksi) tensile. For hot-rolled coils and for annealed, normalised or cold-rolled strip the minimum is 310 MPa (45 ksi) yield and 450 MPa (65 ksi) tensile. Elongation is 22% minimum.

What is the difference between A606 and A847 Corten tubes?

A606 is a strip specification, so A606 tubes rely on the strip certificate. A847 is a tube specification for cold-formed HSLA weathering structural tubing, with properties tested on the finished tube. Use A847 for load-bearing structures and A606 tubes for light frames, railings and furniture.

Are A606 seamless tubes available?

No. Because A606 is a sheet and strip steel, A606 tubes are always welded (ERW). For seamless Corten-type tubes, see ASTM A423 Grade 1, which is used mainly in air preheaters.

Do A606 Corten tubes rust inside?

They can if water gets in and cannot drain. Seal tube ends with caps or welded plates, or drill drain holes at low points, so the inside does not stay wet.

Which certificates come with A606 Corten tubes?

We supply the EN 10204 3.1 mill test certificate for the A606 strip, showing heat number, chemistry and mechanical properties. A dimensional report for the tubes and third-party inspection can be arranged on request.

Export Destinations for A606 Corten Tubes

We supply A606 Corten tubes across India and export to the Middle East (UAE, Saudi Arabia, Qatar, Oman, Kuwait), South and South-East Asia (Sri Lanka, Bangladesh, Nepal, Singapore, Malaysia) and Africa (Egypt, Nigeria, Kenya, South Africa) on request.
